How to Make a Log Cabin Quilt Block—and Why the Layout Changes Everything
Welcome to Block by Block — a new series here on the blog. I've set myself an adventure: a deep dive into 100 quilt blocks, one at a time. For each one, I want to understand how it is sewn, how it changes across a whole quilt, and what its history can tell us — then share what I find. First up, a classic: the Log Cabin.
The Log Cabin is one of those quilt blocks that can look wonderfully complicated in a finished quilt even though the sewing itself is reassuringly simple.
You begin with a square. Then you add narrow fabric strips — traditionally called logs — around it, one after another, letting the block grow outward in a spiral. There are no triangles to cut, no points to match, and no inset seams. Just straight strips and straight seams.
The real magic comes from value. Place darker logs on two adjoining sides and lighter logs on the other two, and the finished block develops a strong diagonal division. Turn a group of those blocks in different directions and that quiet diagonal becomes diamonds, zigzags, furrows, or sweeping areas of light and dark.
What makes a Log Cabin block work?
A traditional Log Cabin block has three essential ingredients: a center square, strips added around that center in a consistent rotation, and a clear contrast between the light side and the dark side.
The individual fabrics do not need to match. In fact, Log Cabin is an excellent block for scraps, precut strips, and stash sewing. What matters most is that every fabric can be sorted confidently into a light pile or a dark pile.
That makes Log Cabin a particularly good lesson in value. Color gets our attention, but value — the relative lightness or darkness of a fabric — is what allows the design to remain visible from across the room.
A quick value test
Photograph your fabrics with your phone and switch the image to black and white. If your intended lights and darks still separate clearly, the block should read well. If they blend into one middle-gray group, replace a few fabrics with lighter lights or deeper darks.
How the block goes together
Log Cabin blocks can be made a few ways. The traditional method uses logs cut to their exact sizes and works quickly when your scant ¼-inch seam is consistent. A gentler alternative cuts each log a little wide and trims the block square after every round: it uses a little more fabric and adds a few minutes at the cutting mat, but it keeps tiny seam differences from piling up as the block grows. That makes it an especially friendly method for newer quilters, or for anyone who would rather trim now than wrestle with uneven blocks later.
Either way, keep the center square in the same orientation the whole time and press each seam away from the center as you go.
Where the logs meet, cumulative seam differences show first — so consistent strip width matters.
Make an 8-inch Log Cabin block
This block finishes at 8" square. The measurements below are based on the block's geometry rather than a single enlarged drawing, which is how Quiltory will eventually be able to size the block accurately in many dimensions. Use a scant 1/4" seam allowance throughout and press each seam away from the center.
Fabric Requirements
Each fabric shows two amounts. The first, Fabric needed, is the minimum the pattern uses. The second, With extra, adds about 10% more so you have room to recut a piece if you miscut or your cutting shifts. Choose the 'with extra' amount when buying yardage so you have a little room for recutting.
| Fabric | Round | Purpose | Fabric needed |
|---|---|---|---|
| Center | Center | Log Cabin Center | 1/8 yard |
| R1 Dark | Round 1 | Log Cabin R1 Dark | 1/8 yard |
| R1 Light | Round 1 | Log Cabin R1 Light | 1/8 yard |
| R2 Dark | Round 2 | Log Cabin R2 Dark | 1/8 yard |
| R2 Light | Round 2 | Log Cabin R2 Light | 1/8 yard |
| R3 Dark | Round 3 | Log Cabin R3 Dark | 1/8 yard |
| R3 Light | Round 3 | Log Cabin R3 Light | 1/8 yard |
Miscellaneous Supplies
- Square ruler at least the size of your unfinished block (required) — used to trim each round square
Cutting Instructions
All measurements are unfinished (cut) sizes — they include seam allowance.
WOF = width of fabric. This pattern assumes 42" usable WOF.
Cutting is organized by fabric. Cut WOF strips first where strips are called for, then subcut.
Center
- Cut (1) strip 2 1/2" x WOF — for the logs. Open the strip flat (single layer), then subcut: (1) square 2 1/2" x 2 1/2".
R1 Dark
- Cut (1) strip 1 3/4" x WOF — for the logs. Open the strip flat (single layer), then subcut: (1) rectangle 1 3/4" x 3 3/4"; (1) rectangle 1 3/4" x 2 1/2".
R1 Light
- Cut (1) strip 1 3/4" x WOF — for the logs. Open the strip flat (single layer), then subcut: (1) rectangle 1 3/4" x 5"; (1) rectangle 1 3/4" x 3 3/4".
R2 Dark
- Cut (1) strip 1 3/4" x WOF — for the logs. Open the strip flat (single layer), then subcut: (1) rectangle 1 3/4" x 5 3/4"; (1) rectangle 1 3/4" x 4 1/2".
R2 Light
- Cut (1) strip 1 3/4" x WOF — for the logs. Open the strip flat (single layer), then subcut: (1) rectangle 1 3/4" x 7"; (1) rectangle 1 3/4" x 5 3/4".
R3 Dark
- Cut (1) strip 1 3/4" x WOF — for the logs. Open the strip flat (single layer), then subcut: (1) rectangle 1 3/4" x 7 3/4"; (1) rectangle 1 3/4" x 6 1/2".
R3 Light
- Cut (1) strip 1 3/4" x WOF — for the logs. Open the strip flat (single layer), then subcut: (1) rectangle 1 3/4" x 9"; (1) rectangle 1 3/4" x 7 3/4".
Block Assembly
Log Cabin Block
Make Log Cabin block with the oversize-and-trim (log) method.
Build from the center square outward, adding one round of logs at a time and trimming the block square after each round (see "Trimming as You Go" below). Each log is cut slightly oversized and trimmed flush, which keeps the block square as it grows.
RST means right sides together: place the two pieces with their printed sides facing before you sew.
Two things to hold onto as you sew:
Step 1 — Start with the Center 2 1/2" x 2 1/2" square. The heart of the block — every log spirals out from here.
Step 2 — Sew a R1 Dark 2 1/2" x 1 3/4" log RST across the top of the center; press the seam outward, away from the middle. Darks stay on the top and left — the shadow half of the cabin. The block should now measure 2 1/2" x 3 3/4" unfinished.
Step 3 — Sew a R1 Dark 1 3/4" x 3 3/4" log RST down the left side; press outward. It runs a little longer than the top log — it covers the end of that top log, and that is how the spiral turns. The block should now measure 3 3/4" x 3 3/4" unfinished.
Step 4 — Sew a R1 Light 3 3/4" x 1 3/4" log RST across the bottom; press outward. Lights fall on the bottom and right — the sunny half. The block should now measure 3 3/4" x 5" unfinished.
Step 5 — Sew a R1 Light 1 3/4" x 5" log RST up the right side; press outward. That closes the first ring. Square it up, trimming from the center square so every round stays balanced. Trim the block square to 4 1/2" x 4 1/2".
Step 6 — Ring 2 — dark log, top. Use the R2 Dark 4 1/2" x 1 3/4" log. Start the next round the same way: a dark log across the top; press outward, away from the center. The block should now measure 4 1/2" x 5 3/4" unfinished.
Step 7 — Sew a R2 Dark 1 3/4" x 5 3/4" log RST down the left; press outward. Again it runs longer than the top, wrapping the corner as the spiral grows. The block should now measure 5 3/4" x 5 3/4" unfinished.
Step 8 — Sew a R2 Light 5 3/4" x 1 3/4" log RST across the bottom; press outward — lights keep to the bottom and right. The block should now measure 5 3/4" x 7" unfinished.
Step 9 — Sew a R2 Light 1 3/4" x 7" log RST up the right side; press outward to close the round. Trim square from the center square again. Trim the block square to 6 1/2" x 6 1/2".
Step 10 — Ring 3 — dark log, top. Use the R3 Dark 6 1/2" x 1 3/4" log. Final round — a dark log across the top; press outward. The block should now measure 6 1/2" x 7 3/4" unfinished.
Step 11 — Sew a R3 Dark 1 3/4" x 7 3/4" log RST down the left, the longest log yet; press outward. It carries the darkest value on the outer edge. The block should now measure 7 3/4" x 7 3/4" unfinished.
Step 12 — Sew a R3 Light 7 3/4" x 1 3/4" log RST across the bottom; press outward. The block should now measure 7 3/4" x 9" unfinished.
Step 13 — Sew a R3 Light 1 3/4" x 9" log RST up the right side; press outward. Square up the finished block from the center one last time. Trim the block square to 8 1/2" x 8 1/2".

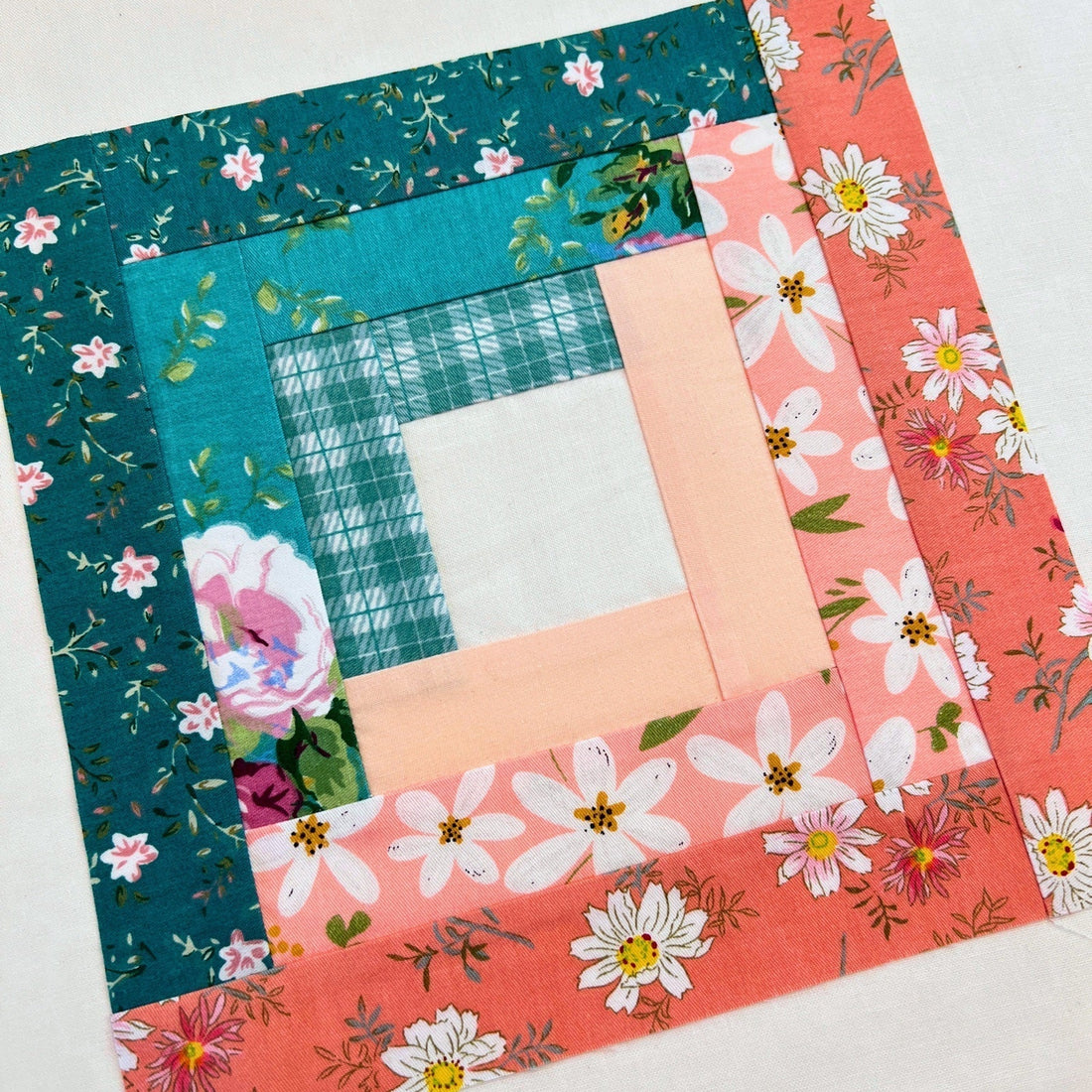

The finished block should measure 8 1/2" x 8 1/2" unfinished and finishes at 8" x 8" in the quilt.
Trimming as You Go
Line the ruler's 45-degree line through two opposite corners of the 2 1/2" (cut) center square, then slide until those corners read the "center-corner ruler reading" below from the top and the side. Each log is cut 1 3/4" wide (1" finished + 1/2" seam + 1/4" oversize) and trimmed flush after each round.
The table below gives the exact trim-to size and ruler reading for each round; the diagram shows how to line the ruler up on the center square.
| Round | Trim block to | Center-corner ruler reading |
|---|---|---|
| 1 | 4 1/2" | 3 1/4" |
| 2 | 6 1/2" | 4 1/4" |
| 3 | 8 1/2" | 5 1/4" |
Pressing
Press every seam away from the center of the block, so the seams nest and the block lies flat. The arrows show the pressing direction for each log.
Five common Log Cabin problems
- The light and dark sides disappear. Your fabrics may be too similar in value — add a few very light fabrics and a few clearly dark ones rather than relying on mediums.
- The block turns into a rectangle. Check your seam allowance and strip width; even a tiny difference repeated over twelve logs becomes visible.
- The center drifts off-center. Trim using the original center square as your reference, not simply the current outer edges.
- The spiral suddenly looks wrong. It is easy to attach a strip to the wrong side. Keep careful track of where you are in the rotation, keep the construction diagram beside the machine, and hold the same block orientation throughout — otherwise a log lands on the wrong side.
- Directional prints look disorderly. The logs rotate as the block grows, so strong stripes, words, or one-way motifs may change direction from strip to strip. That can be playful — but it should be intentional.
Scrappy does not mean random
A scrappy Log Cabin can hold dozens of fabrics and still look cohesive. The secret is to be flexible about color but disciplined about value. Sort scraps into three piles — definite lights, definite darks, and uncertain middles — and build the block from the first two. Save the uncertain fabrics for another project, or use them only after checking that they do not blur the diagonal division.
One block, many quilt designs
A single Log Cabin block is pleasant. A group of Log Cabin blocks is where the design truly comes alive. Each block carries the same diagonal light-and-dark division, and by rotating those diagonals you get entirely different quilt-wide patterns: turn the blocks inward for the concentric diamonds of Barn Raising; line the diagonals up for the long zigzag rows of Straight Furrows; group them for the broad areas of Light and Dark.
It is worth being clear about one thing: Barn Raising, Straight Furrows, Sunshine and Shadow, and Light and Dark are arrangements of Log Cabin blocks, not separate block designs.
The classic Log Cabin layouts
Barn raising
Blocks rotate around the center in concentric diamonds of light and dark.
Straight furrows
Alternating turned blocks pair their dark halves into unbroken diagonal furrows of light and dark.
Light and dark
Four blocks pinwheel together into alternating light and dark diamonds.
These are all the same block, simply rotated and grouped different ways — not different block designs.
Be flexible about color, but disciplined about value.
The story behind the Log Cabin
The Log Cabin name evokes a settler's cabin viewed from above, with fabric strips as the stacked logs around a central square. Modern quilt lore often describes a red center as the hearth. That is a lovely tradition, but it was not the only — or necessarily the earliest — choice: nineteenth-century instructions also describe dark or black centers, and the familiar red-hearth reading appears to have become popular later.
Written references to Log Cabin quilts appear by 1863. Printed instructions followed in the 1870s, and the design became a major late-nineteenth-century quilting fashion; sources also connect the popularity of the name to the log-cabin imagery around Abraham Lincoln's 1860 presidential campaign. The block was practical as well as symbolic — scraps of silk, wool, and worn clothing could be cut into narrow strips, and fragile fabrics were often sewn to a muslin foundation for stability.
Different sources have called related designs Loghouse Quilting, Canadian patchwork, and Log Patch. Today, Log Cabin also names a broader family that includes Courthouse Steps, Pineapple, and Chimneys and Cornerstones.
Log Cabin or Courthouse Steps?
These two are easy to confuse, because both grow from a center square using straight strips. In a Log Cabin, the strips spiral around the center, creating a diagonal light-and-dark split. In Courthouse Steps, the strips are added in opposite pairs — top and bottom, then left and right — creating a more symmetrical, hourglass-like division. Once you look at the direction the logs were added, the difference becomes much easier to see.
The most important Log Cabin lesson
The success of this block is not determined by whether every blue matches or every print comes from the same collection. It comes from three simpler choices: keep the strip widths consistent; maintain a clear light-and-dark division; and decide how the blocks will be rotated before you assemble the quilt. Get those three things right, and even a lively pile of scraps can become an orderly, dramatic Log Cabin quilt.
Which block should I cover next?
Leave a comment below and tell me the block you'd love to see in Block by Block — I'm building this list with you.
These deep dives are also growing into something bigger: Quiltory, a practical, source-backed guide to quilt blocks that I am building now. It will show how each block goes together, how it behaves across a full quilt, which blocks are commonly confused, and what the historical record actually supports. It will also include tools for sizing blocks to your own quilt.- it takes care of the quilty math for you and produces a finished pattern. As of this blog post, Quiltory is still under construction and coming soon — until then, I'll keep sharing block guides like this one right here.
